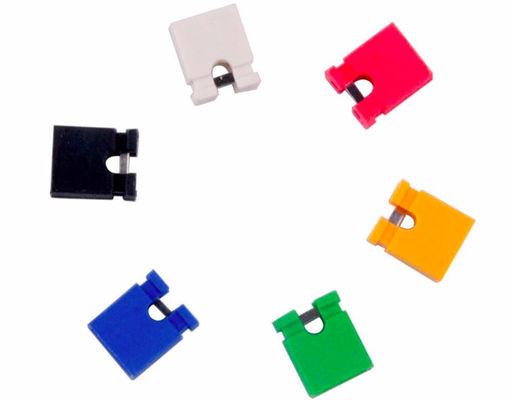

Colorful 2.54mm Mini Jumper Connector / Open Type Header Shunt With Height 6.0mm

Colorful 2.54mm Mini Jumper Connector / Open Type Header Shunt With Height 6.0mm
Colorful 2.54mm Mini Jumper Connector / Open Type Header Shunt With Height 6.0mm Colorful 2.54mm Mini Jumper Connector / Open Type Header Shunt With Height 6.0mm Colorful 2.54mm Mini Jumper Connector / Open Type Header Shunt With Height 6.0mm

Large Image :  Colorful 2.54mm Mini Jumper Connector / Open Type Header Shunt With Height 6.0mm

Product Details:

Place of Origin: CHINA
Brand Name: ANYO
Model Number: AY1044-1A

Payment & Shipping Terms:

Minimum Order Quantity: 2000pcs
Price: Negotiation
Packaging Details: Customized carton
Delivery Time: 8-10 work days
Payment Terms: L/C, T/T
Supply Ability: 100000 per day
Detailed Product Description
Other Name: Header Shunt Contact Resistance: 30mΩ Max.
Plating: Gold Or Tin Insulation Resistance: 500MΩ Min.
Storage Temperature: -40~105℃ Color: Colorful
High Light:

stereo headphone jack

,

mono headphone jack

,

aviation wire connectors

Colorful 2.54mm Mini Jumper Connector Open Type With Height 6.0mm



Description:



Mini jumper used to jumper two neighboring male headers (2.54mm pitch) without the hassle of maneuvering and re-maneuvering wires.



Material:



Insulator Thermoplastic (UL94V-0)
Contact Copper alloy
Contact plated

Full gold flash

Nickel

Gold+nickel



Specification:



Contact resistance 30mΩ max.
Dielectric withstanding voltage 250V AC (rms) for 1 minute
Insulation resistance 500MΩ Min.
Operating temperature -40~105℃



Dimensions: (mm)



Colorful 2.54mm Mini Jumper Connector / Open Type Header Shunt With Height 6.0mm 0
