DR 90° D-SUB 9P Small Electrical Connectors Male To PCB For RS232 Extension Cable

China DR 90° D-SUB 9P Small Electrical Connectors Male To PCB For RS232 Extension Cable supplier
DR 90° D-SUB 9P Small Electrical Connectors Male To PCB For RS232 Extension Cable supplier DR 90° D-SUB 9P Small Electrical Connectors Male To PCB For RS232 Extension Cable supplier DR 90° D-SUB 9P Small Electrical Connectors Male To PCB For RS232 Extension Cable supplier

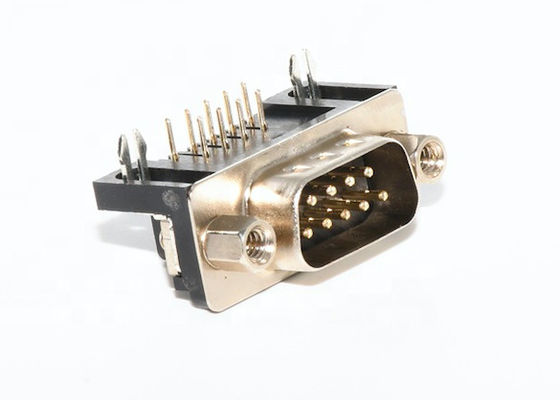

Large Image :  DR 90° D-SUB 9P Small Electrical Connectors Male To PCB For RS232 Extension Cable

Product Details:

Place of Origin: CHINA
Brand Name: ANYO
Model Number: AY1046-3M

Payment & Shipping Terms:

Minimum Order Quantity: 2000pcs
Price: Negotiation
Packaging Details: Customized carton
Delivery Time: 8-10 work days
Payment Terms: L/C, T/T
Supply Ability: 100000 per day
Contact Now
Detailed Product Description
Other Name: D Shape Connector Contact Resistance: 30mΩ Max.
Pin Type: Machined Pin Insulation Resistance: 1000MΩ Min.
Mechanical Life: 500 Times Packing: Tray Packing

DR 90° D-SUB 9P Connector Male To PCB For RS232 Extension Cable





Description:



The D-SUB connector used in many applications as a multi-way connector, but it is also most widely known as the connector used for RS-232 serial links. In fact the D-SUB connector was used for the serial link on most computers for many years, and today variations of D-SUB connectors are still found on most computers.





Material:



Contact: Brass

Insulation: PBT +30% Glass fiber

Flammability: UL94V-0

Shell: Steel nickel plated



Specification:



Insulation resistance 1000MΩ Min.
Contact resistance 30mΩ Max.
Withstanding voltage 1000VAC
Current rating 5A AC/DC Max.
Operation temperature -55~85℃
Packing Tray packing
Tail construction type DIP type / SMD type
Connector type Right angle machined pin
Mating options 2-prong board locks



Dimensions: (mm)



Position A±0.2 B±0.2 C±0.3 D
9 17.90 24.99 30.80 16.33
15 26.50 33.32 39.14 24.66
25 40.00 47.04 53.04 38.38
37 56.50 63.50 69.32 54.84

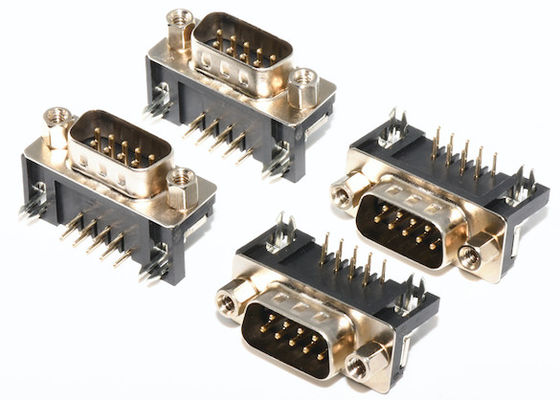

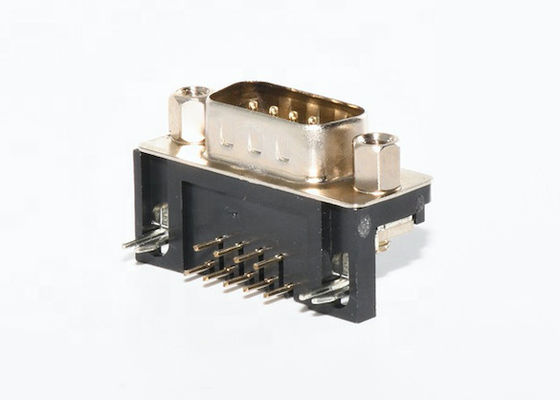

DR 90° D-SUB 9P Small Electrical Connectors Male To PCB For RS232 Extension Cable
