| Other Name: | Binding Post | Application: | Audio & Video |
|---|---|---|---|
| Type: | DIN, Push Type | Material: | Brass |
| Color: | Chrome Plated | Insulator: | ABS |
| Highlight: | aviation wire connectors,mono headphone jack |
||

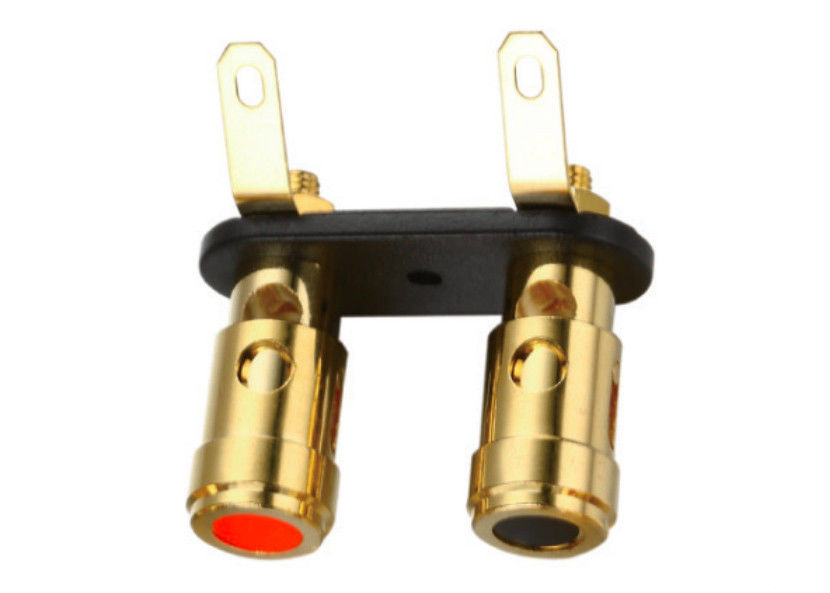

Dual Gold Plated Terminal Binding Post Red And Black For Speaker Box
Description:
Binding post is a connector commonly used on electronic test equipment to terminate (attach) a single wire or test lead. They are also found on loudspeakers and audio amplifiers as well as other electrical equipment.
Specification:
| Material | Copper |
| Plated | Gold plated |
| Size | 15.7*40mm |
| Temperature | -40~70℃ |
| Withstand voltage | AC 500V / 50Hz / Min. |
| Rated load | DC 50V 0.2A |
| Insertion and extraction force | 5~30N |
| Contact resistance | ≤0.03Ω |
| Insulation resistance | ≥100MΩ DC 500V |
| Life | 10000 times |
Application:
• Boom box speaker,Loudspeaker
• Home theatre system speaker
• Portable wooden box speaker
• Professional active speaker
Dimension: (mm)
