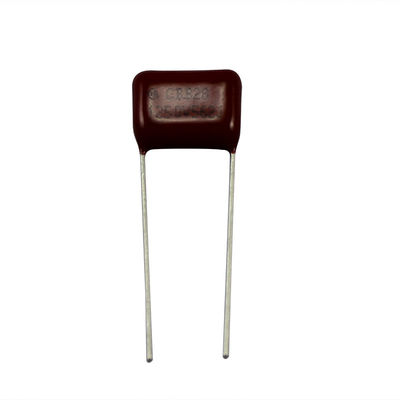

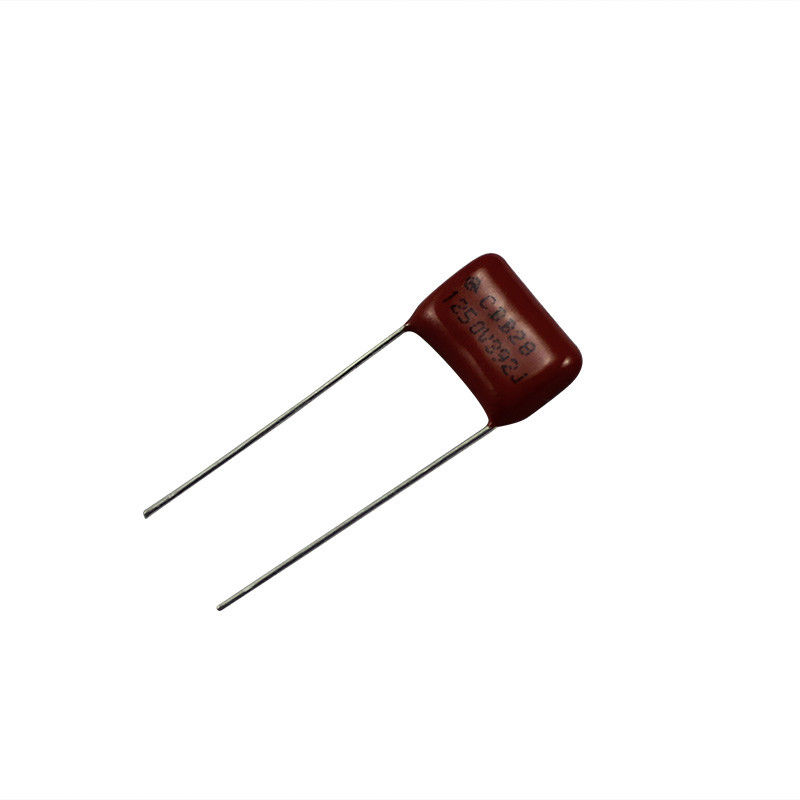

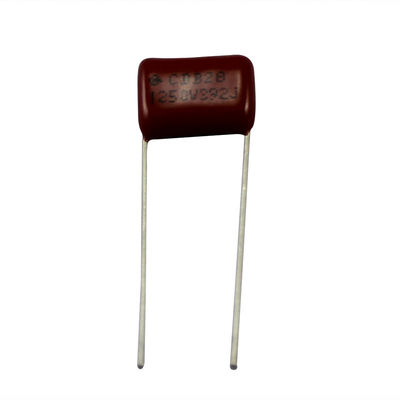

Metallized Polypropylene Film Capacitor CBB28 MPP For Electronic Ballast

Metallized Polypropylene Film Capacitor CBB28 MPP For Electronic Ballast
Metallized Polypropylene Film Capacitor CBB28 MPP For Electronic Ballast Metallized Polypropylene Film Capacitor CBB28 MPP For Electronic Ballast Metallized Polypropylene Film Capacitor CBB28 MPP For Electronic Ballast

Large Image :  Metallized Polypropylene Film Capacitor CBB28 MPP For Electronic Ballast

Product Details:

Place of Origin: CHINA
Brand Name: ANYO
Model Number: CBB28

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Negotiation
Packaging Details: Customized carton
Delivery Time: 8-10 work days
Payment Terms: L/C, T/T
Supply Ability: 100000PCS per day
Detailed Product Description
Other Name: MPP Film Capacitor Test Voltage: 200% Of Rated Voltage
Capacitance Tolerance: ±5%(J); ±10%(K);±20%(M) Operating Temperature Range: -40℃~ +105℃
Dissipation Factor: ≤0.001 (10KHz) Insulation Resistance: ≥30000MΩ At 500V
High Light:

mkp film capacitor

,

radial lead capacitor

CBB28(MPP) metallized polypropylene film capacitor for electronic ballast



Description:



A Capacitor is a passive electrical component that can store energy in the electric field between a pair of conductors called “plates”. The process of storing energy in the capacitor is known as “charging”. The ability of a capacitor to store charge is measured by its capacitance. Capacitors are used in electronic circuits as energy storage devices. They are also be used to differentiate between high-frequency and low-frequency signals. A wide variety of capacitors are available, including electrolytic capacitors, basic parallel-plate capacitors, and mechanical variable capacitors.



Metallized polypropylene film capacitors, which are constructed with metallized polypropylene film dielectric, copperply lead and epoxy resin coating. There are suitable for blocking, by-pass, coupling, decoupling filtering, timeing, tuning temperature compensation, and ideal for use in telecommunication equipments data processing equipments, industrial instruments, automatic control system and other general electronic equipments.



Features:



• Using metalized polypropylene as dielectric, non-inductive winding.
• Good pulse and temperature, low loss, high insulation, good self-healing
• Suitable for the integration of energy-saving lamps, electronic ballast and so on.



Application:
Widely used in high voltage power resources,electrical lighting and ballasts during the rising time of high frequency and high impulse.



Capacitance code:

103=10,000pf=0.01μF

104=100,000pf=0.1μF

105=1,000,000pf=1μF

223=22,000pf=0.022μF

474=470,000pf=0.47μF



Symbols of capacitance tolerance:

F=±1%

G=±2%

H=±3%

J=±5%

K=±10%

M=±20%



Metallized Polypropylene Film Capacitor CBB28 MPP For Electronic Ballast 0



μF 630V 1000V 1250V

W

max.

H

max.

T

max.

d P

W

max.

H

max.

T

max.

d P

W

max.

H

max.

T

max.

d P
0.001 13.5 7.5 5 0.6 10 13.5 7.5 5 0.6 10 13.5 7.5 5 0.6 10
0.0022 13.5 7.5 5 0.6 10 13.5 7.5 5 0.6 10 13.5 7.5 5 0.6 10
0.0033 13.5 7.5 5 0.6 10 13.5 7.5 5 0.6 10 13.5 8.5 5.5 0.6 10
0.0047 13.5 7.5 5 0.6 10 13.5 8.5 5.5 0.6 10 13.5 9 6.5 0.6 10
0.0056 13.5 7.5 5 0.6 10 13.5 8.5 6 0.6 10 13.5 10.5 7 0.6 10
0.0068 13.5 8 5 0.6 10 13.5 10.5 6.5 0.6 10 13.5 10.5 7.5 0.6 10
0.0075 13.5 8.5 6 0.6 10 13.5 11 6.5 0.6 10 13.5 11 7.5 0.8 10
0.0082 13.5 8.5 6 0.6 10 13.5 11 7 0.6 10 13.5 11 7.5 0.8 10
0.01 13.5 9 6 0.6 10 13.5 12 8 0.6 10 13.5 12 5.5 0.8 15
0.015 13.5 10.5 7 0.6 10 18.5 12 5.5 0.6 13.5 18.5 13 6.5 0.8 15
0.022 18.5 12 6 0.6 15 18.5 13 6.5 0.6 18.5 18.5 14 7.5 0.8 15
0.033 18.5 12 6.5 0.6 15 18.5 14 8 0.6 18.5 18.5 15.5 9.5 0.8 15
0.047 18.5 13 7.5 0.6 15 18.5 15.5 9 0.8 18.5
0.056 18.5 15.5 9 0.8 15 18.5 16.5 10.5 0.8 18.5
0.068 18.5 16.5 10 0.8 15
