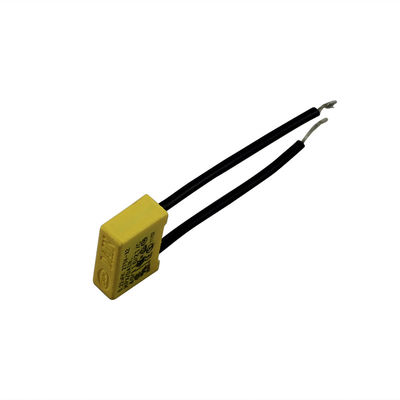

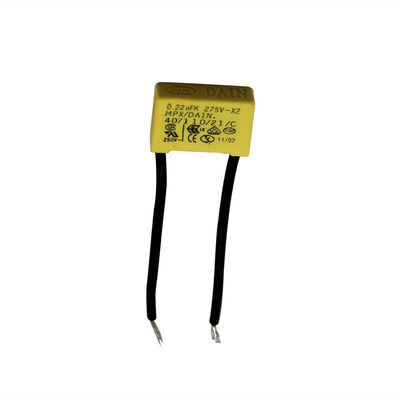

Soft Wire Lead Metallized Polypropylene Film Capacitor X2 MKP Film Capacitor

China Soft Wire Lead Metallized Polypropylene Film Capacitor X2 MKP Film Capacitor supplier
Soft Wire Lead Metallized Polypropylene Film Capacitor X2 MKP Film Capacitor supplier Soft Wire Lead Metallized Polypropylene Film Capacitor X2 MKP Film Capacitor supplier Soft Wire Lead Metallized Polypropylene Film Capacitor X2 MKP Film Capacitor supplier

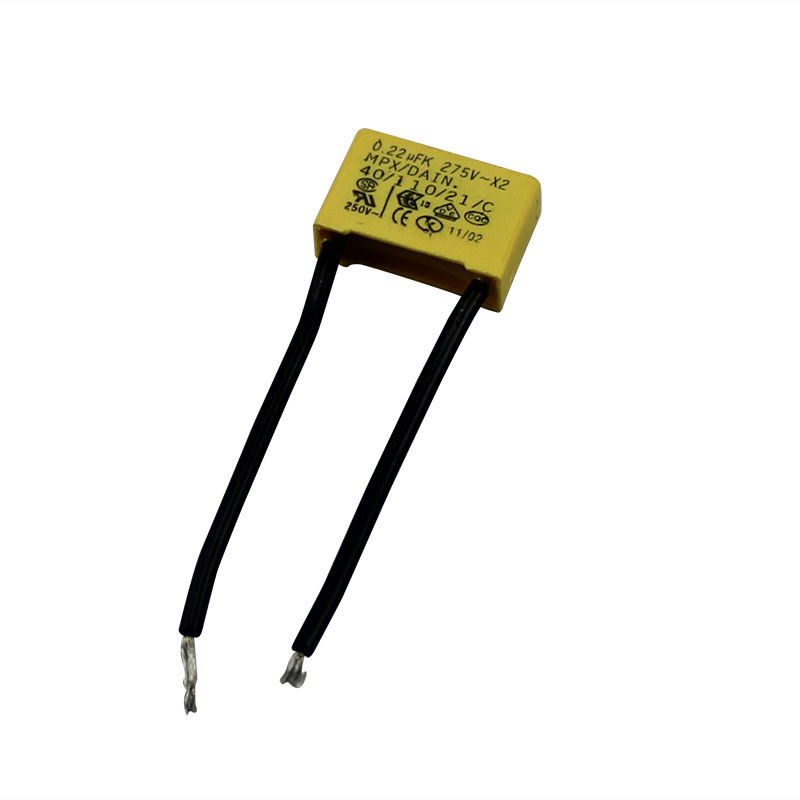

Large Image :  Soft Wire Lead Metallized Polypropylene Film Capacitor X2 MKP Film Capacitor

Product Details:

Place of Origin: CHINA
Brand Name: ANYO
Model Number: X2

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Negotiation
Packaging Details: Customized carton
Delivery Time: 8-10 work days
Payment Terms: L/C, T/T
Supply Ability: 100000PCS per day
Contact Now
Detailed Product Description
Other Name: MKP Rated Voltage: 250VAC,275VAC,310VAC
Capacitance Range: 0.001μF~1μF Operating Temperature Range: -40℃~ +100℃
Capacitance Tolerance: ±10%(K);±20%(M) Dissipation Factor: 0.1% Max (25℃, 1KHz)

Soft wire lead safety metallized polypropylene film capacitor X2





Description:



MKP film capacitor are capacitors which use a thin plastic film as the dielectric. This film is made extremely thin using a sophisticated film drawing process. Once the film is manufactured, it may be metallized or left untreated, depending on the needed properties of the capacitor. Electrodes are then added and the assembly is mounted into a case which protects it from environmental factors. They are used in many applications because of their stability, low inductance and low cost. There are many types of film capacitors, including polyester film, metallized film, polypropylene film, PTFE film and polystyrene film. The core difference between these capacitor types is the material used as the dielectric, and the proper dielectric must be chosen according to the application.



Features:



• Self-healing properties.
• Flame-retardant plastic case and epoxy resin.
• High moisture-resistance.
• Good solder ability.



Application:



Metallized polyester film capacitors are used in applications that require long term stability at a relatively low.



Advantage:



Film capacitors are widely used because of their superior characteristics. This capacitor type is not polarized, which makes them suitable for AC signal and power use. Film capacitors can be made with very high precision capacitance values, and they retain that value longer than other capacitor types. This means that the aging process is generally slower than in other capacitor types.



Dimension:

Soft Wire Lead Metallized Polypropylene Film Capacitor X2 MKP Film Capacitor



Cap. (uF)                                                                                                  Size unit:m/m

Symbol μF W H T P d
102 0.001 13 9 4 10 0.6
122 0.0012 13 9 4 10 0.6
152 0.0015 13 9 4 10 0.6
182 0.0018 13 9 4 10 0.6
222 0.0022 13 9 4 10 0.6
272 0.0027 13 9 4 10 0.6
332 0.0033 13 11 5 10 0.6
392 0.0039 13 11 5 10 0.6
472 0.0047 13 11 5 10 0.6
562 0.0056 13 11 5 10 0.6
682 0.0068 13 11 5 10 0.6
822 0.0082 13 11 5 10 0.6
103 0.01 13 9 4 10 0.6
103 0.01 13 11 5 10 0.6
123 0.012 13 11 5 10 0.6
153 0.015 13 11 5 10 0.6
183 0.018 13 11 5 10 0.6
223 0.022 13 11 5 10 0.6
223 0.022 18 10 5 15 0.6
273 0.027 18 12 6 10 0.6
333 0.033 18 12 6 10 0.6
333 0.033 18 10 5 15 0.6
393 0.039 18 10 5 15 0.6
473 0.047 13 12 6 10 0.6
473 0.047 18 10 5 15 0.6
563 0.056 18 12 6 15 0.6
683 0.068 18 12 6 15 0.6
823 0.082 18 12 6 15 0.6
104 0.1 13 12 6 10 0.6
104 0.1 18 13.5 7.5 15 0.6
104 0.1 18 13.5 7.5 15 0.8
124 0.12 18 13.5 7.5 15 0.8
154 0.15 18 12 6 15 0.8
154 0.15 18 13.5 7.5 15 0.8
154 0.15 18 14.5 8.5 15 0.8
154 0.15 26.5 15 6 22.5 0.8
184 0.18 18 14.5 8.5 15 0.8
224 0.22 18 12 6 15 0.8
224 0.22 18 14.5 8.5 15 0.8
224 0.22 26.5 15 6 22.5 0.8
224 0.22 26.5 16.5 7 22.5 0.8
274 0.27 26.5 17 8.5 22.5 0.8
334 0.33 18 16 10 15 0.8
334 0.33 26.5 16.5 7 22.5 0.8
334 0.33 26.5 17 8.5 22.5 0.8
394 0.39 26.5 18 10 22.5 0.8
474 0.47 18 16 10 15 0.8
474 0.47 18 18 10 15 0.8
474 0.47 26.5 17 8.5 22.5 0.8
474 0.47 26.5 18 10 22.5 0.8
474 0.47 32 20 11 27.5 0.8
564 0.56 32 20 11 27.5 0.8
684 0.68 26.5 18 10 22.5 0.8
684 0.68 32 20 11 27.5 0.8
824 0.82 32 22 13 27.5 0.8
105 1 26 21.5 12 22.5 0.8
105 1 32 20 11 27.5 0.8
105 1 32 22 13 27.5 0.8
125 1.2 32 30 15 27.5 0.8
155 1.5 32 30 15 27.5 0.8
185 1.8 31 31 18 27.5 0.8
225 2.2 32 30 15 27.5 0.8
225 2.2 31 31 18 27.5 0.8
225 2.2 41 32.5 17.5 37.5 1
