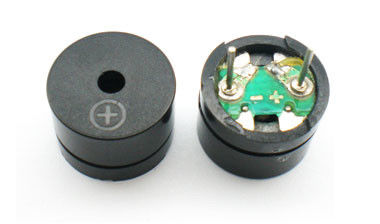

Professional Magnetic Transducer Buzzer Split Pin Terminal Type Φ12*8.5mm

Professional Magnetic Transducer Buzzer Split Pin Terminal Type Φ12*8.5mm
Professional Magnetic Transducer Buzzer Split Pin Terminal Type Φ12*8.5mm Professional Magnetic Transducer Buzzer Split Pin Terminal Type Φ12*8.5mm

Large Image :  Professional Magnetic Transducer Buzzer Split Pin Terminal Type Φ12*8.5mm

Product Details:

Place of Origin: CHINA
Brand Name: ANYO
Model Number: 12085W

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Negotiation
Packaging Details: customized carton
Delivery Time: 8-10 work days
Payment Terms: L/C, T/T
Supply Ability: 10000pcs per day
Detailed Product Description
Other Name: Magnetic Door Buzzer Rated Voltage: 1.5V; 3V; 5V
Resonant Frequency: 2048Hz Rated Current: Max.30mA
Sound Pressure Lever: Min.85dB/10cm Weight: 2g
High Light:

electromagnetic buzzer

,

smd magnetic buzzer

Split pin terminal type buzzer , Φ12*8.5mm AC type without oscillator circuit





Description:



A buzzer can be either AC or DC operated and can be mounted anywhere according to the need and purpose. When used as an alarm device, the buzzer is usually mounted on a control panel. The latest technological developments have led to using buzzers in sirens and signals for a wide range of applications.



A passive buzzer emits a tone when a voltage is applied across it. It also requires a specific signal to generate a variety of tones.



Application:



• Medical equipment: glucose meter for blood, temperature test instrument, ECG monitor, fetal heart tester, blood glucose meter
• Home appliances: refrigerator, washing machine, computer, air conditioner, telephone, microwave oven, oven, TV set, keychain
• Electronic products: mobile phone, remote control, anti-lost device, POS machine, electronic toy, robot, watch, facial massager, instruments and apparatuses, unmanned aerial vehicle
• Security equipment: warning lights, anti-theft electronic locks, safety equipment and sirens/alarms/car alarm.



Specifications:



Type Unit 12085W01 12085W03 12085W05
Rated voltage V 1.5 3 5
Operating voltage V 1-4 3-6 4-8
Rated current mA ≤30 ≤30 ≤30
Coil resistance Ω 8±2 16±4 42±6
Sound output at 10cm dB ≥85 ≥85 ≥85
Resonant frequency Hz 2048
Operating temperature -20~+70
Storage temperature -30~+80
Weight g 2



Difference between piezo buzzer & magnetic buzzer:

A piezo buzzer generates sound because of the piezoelectric effect from the piezoelectric ceramic which drives the metallic diaphragm to vibrate.

A magnetic buzzer is based on the electromagnetic principle, the metal diaphragm is pulled when input the power, and spring back without power.

The piezo buzzer is driven by square waves, and the magnetic buzzer needs 1/2 square waves to drive.

We suggest inputting higher voltage for a piezo buzzer, normally over 9V to have enough SPL. On the other hand, a magnetic buzzer can be driven to generate 85 dB by only 1.5V, but the consumption of the current will be much higher than Piezo one.

To compare the two types of buzzers, the magnetic type can have lower frequency response with the same dimension.

Though being limited by the dimension, the SPL of a magnetic buzzer can only reach to 90 dB. The piezo buzzer can achieve the SPL of 120 dB in some spec., some larger size can also easily reach to 100 dB.

  Piezo buzzer Magnetic buzzer
Start method Piezoelectric effect Electro-magnetic effect
Size Big (10-50mm) Small(6-25mm)
Resonant frequency High(2-6KHz) Low(1-3KHz)
Operating voltage High(9-24V) Low(1.5-12V)
Sound level Louder(85-120dB) Lower(70-95dB)
Current consumption Low(5-20mA) High(35-60mA)



Dimension: (mm)

Tolerance: ±0.5

Professional Magnetic Transducer Buzzer Split Pin Terminal Type Φ12*8.5mm 0

Frequency response:

Professional Magnetic Transducer Buzzer Split Pin Terminal Type Φ12*8.5mm 1
