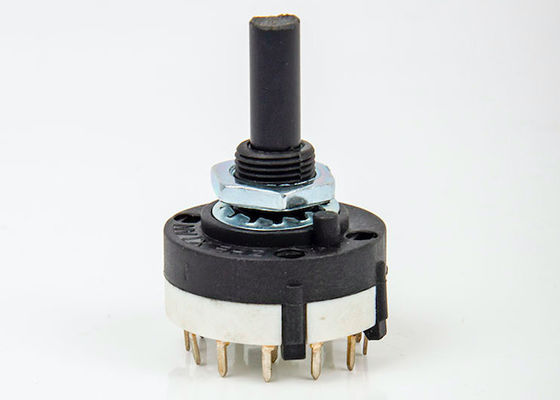

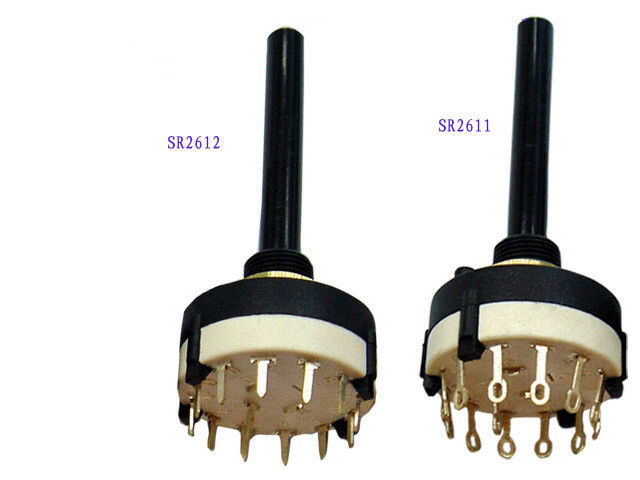

26mm Band Selector Rotary Switch, 1 pole 12 position with 6mm shaft
Description:
A rotary switch is a switch operated by rotation. These are often chosen when more than 2 positions are needed, such as a three-speed fan or a CB radio with multiple frequencies of reception or "channels".
Rotary switches are user configurable in relation to the number of positions. A special toothed washer that sits below the holding nut can be positioned so that the tooth is inserted into one of a number of slots in a way that limits the number of positions available for selection. For example, if only four positions are required on a twelve position switch, the washer can be positioned so that only four switching positions can be selected when in use.
Features:
• Carbon resistive element
• Dustproof enclosure
• Polyester substrate
• Also upon request:
* Wiper positioned at 50% or fully clockwise
* Supplied in magazines for automatic insertion
* Long life model for low cost control potentiometer application
* Self extinguishable plastic UL 94V-0
* Cut track option
* Special tapers
* Mechanical detents
* Low & extra low torque versions
* Special switch option
Electrical specifications:
Rated power |
350mA @ 125VAC 150mA @ 250VAC |
Max. operating voltage |
250VAC/DC |
Withstanding voltage |
1500V Max. |
Max. Operating current |
5A non-switching |
Insulation resistance |
100MΩ Min. |
Operating temperature |
-30℃~ +85℃ |
Durability |
≥10,000 times |
Application:
Widely used on radio, TV, industrial machine control unit, or other electronic devices.
• Lighting equipment adjustment
• Signal selection of audios
• Industrial equipment control
• Exact machinery control
• Public audio system
• Automobile
• Communication equipment
• White goods market
Dimension:
Types of shaft:
Flat shaft:
Round shaft:
Teeth knurl:
Shaft length:
Schematics & P.C. Mounting:
