| Other Name: | Absolute Encoder | Rotational Life: | 15000 Times |
|---|---|---|---|
| Size: | 10mm Dual Unit | Total Rotational Angle: | 300°±5° |
| Application: | Medical Equipment | Rated Voltage: | DC5V |
| Highlight: | rotary switch potentiometer,carbon type potentiometer |
||

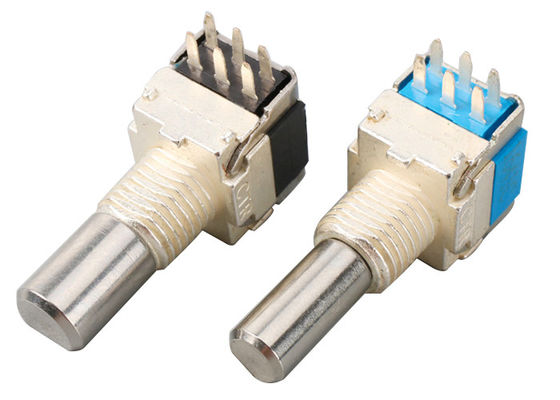

10mm Dual Unit Absolute Encoder DC5V 16 Detent For Medical Equipment
Electrical specifications:
| Items | Specifications | Condition |
| Voltage rating | DC 10V | |
| Current rating | 1mA | |
| Max. operating current | 2mA | |
| Contact resistance | 1mΩ Max. (Including resistance of circut) | After being rotated several times,measured by voltage decreasing method at 5V DC 1A of less than 2mv 1k HZ |
| Insulation resistance | 100MΩ Min. | At DC 250V |
| Dielectric strength | No subversion on insulating material | AC300V (50~60Hz) for 1 minute |
| Output signal | Refer to attached drawing | |
| Stopper strength | 3Kgf.cm | 300° travel products |
Mechanical Characteristics:
| Items | Specifications | Condition |
| Rotational torque (gf.cm) | 100~500gf.cm | |
| Push-pull strength | Push/pull 10Kgf | 10Kgf.cm for 15 seconds |
| Total rotational angle | 300°/360° | |
| Number of detent | 16 | Rotate a week (360 °) positioning number |
Durability:
| Items | Specifications | Condition |
| Rotational life | Encoder shall be operated 15,000 cycles without load | 16~20 times per minute |
| Waterproof level | IP67 | |
| Operating temperature | -40℃~85℃ | |
Dimension:
