Other Name: | Omnidirectional Electret Microphone | S/N Ratio: | ≥58dB |
---|---|---|---|
Sound Level: | 110dB | Directivity: | Omni-directional |
Sensitivity: | -40dB | Operating Temperature: | -20~+60℃ |
High Light: | smd chip resistor,electret condenser microphone |

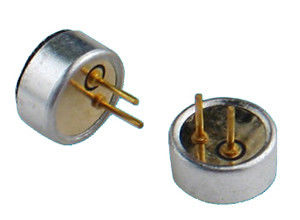

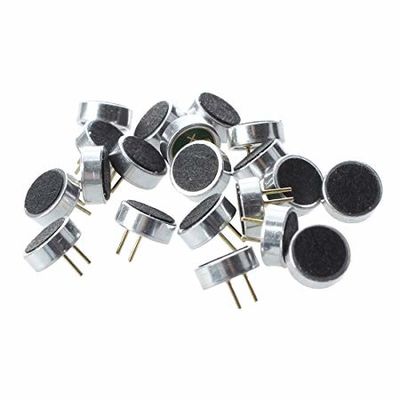

6027 electret condenser microphone 6*2.7mm with or without capacitor
Storage and judgement conditions:
Temperature range(℃) | Rel Humidity(%) | Static pressure(kPa) | |
Judgement | 19~21 | 60~70 | 86~106 |
Storage | -30~70 | ||
Operating | -20~60 |
Specifications:
Test conditions: Vs=2.0V, RL=2.2KΩ, Temp=20±2℃, R.H=60±5%
Item | Symbol | Test conditions | Min. | Standard | Max. | Unit |
Sensitivity | S |
f=1KHz, S.P.L=1Pa |
-43 | -40 | -37 |
dB 0dB=1V/Pa |
Impedance | Z |
f=1KHz, S.P.L=1Pa |
2.2 | KΩ | ||
Directivity | Omni-directional | |||||
Current consumption | I | 500 | μA | |||
Operation voltage range | Vs | 1.0 | 2.0 | 10 | V | |
S/N ratio | S/N(A) |
f=1KHz, S.P.L=1Pa A curve |
≥58 | dB | ||
Decreacing voltage characteristic | △S |
f=1KHz, S.P.L=1Pa Vs=2.0-1.5V |
-3 | dB | ||
Max. input sound level | MISPL |
f=1KHz Distortion<1% |
110 | dB |
Frequency response:
Test circuit:
Measurement Circuit
Vs:Source Voltage 2.0V RL:Load Resistance 2.2KΩ
Test setup drawing:
Reliability Test:
All tests should be done after 2 hours of conditioning at 20℃,R.H65% ,while the sensitivity is to be within ±3dB from the initial sensitivity after the following experiments.
8.1 High Temperature Test
High temperature: +80℃
Duration: 72 hours
8.2 Low Temperature Test
Low temperature: -40℃
Duration: 72 hours
8.3 Temperature Cycle Test (See in Fig.1)
Low temperature: -40℃
High temperature: +80℃
Changeover time: 10min
Duration: 30min
Cycle: 32
8.4 Statical Humidity Test
Temperature: +40℃
Relative humidity: 90~95%
Duration: 72hours
8.5 Vibration Test
Amplitude : 1.52mm
Duration: 1minutes /plane
Freq.range: 10~55 Hz
Total time: 2 hours
8.6 Dropping Test
Drop a unit unpacked onto a board of 20mm thick.
Height: 1.0 m
Cycle: 6
List and Structure of Materials:
No. | Part name | Material name | Qty |
1 | PCB | FR-4 | 1 |
2 | FET | K596 | 1 |
3 | Holder | POM | 1 |
4 | Back plate | Cu | 1 |
5 | Spacer | Mylar | 1 |
6 | Film | FEP | 1 |
7 | Outer most shell | Al | 1 |
8 | Cloth | Fabrics | 1 |
Dimension:(mm)
