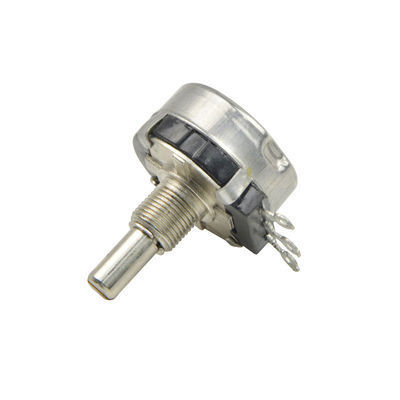

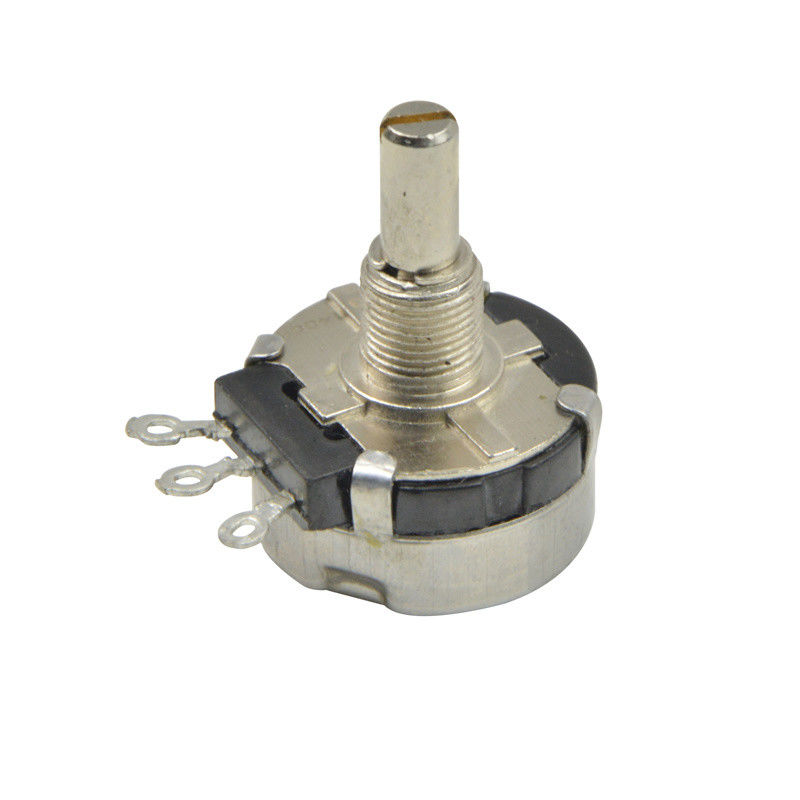

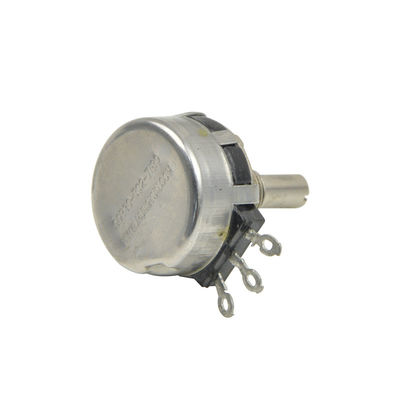

SCR30 10k Rotary Potentiometer , Precision Single Turn Potentiometer With Metal Shaft

China SCR30 10k Rotary Potentiometer , Precision Single Turn Potentiometer With Metal Shaft supplier
SCR30 10k Rotary Potentiometer , Precision Single Turn Potentiometer With Metal Shaft supplier SCR30 10k Rotary Potentiometer , Precision Single Turn Potentiometer With Metal Shaft supplier SCR30 10k Rotary Potentiometer , Precision Single Turn Potentiometer With Metal Shaft supplier

Large Image :  SCR30 10k Rotary Potentiometer , Precision Single Turn Potentiometer With Metal Shaft

Product Details:

Place of Origin: CHINA
Brand Name: ANYO
Model Number: SCR30

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: 2000pcs/carton, 16kg, 40*30*25cm
Delivery Time: 8-10 work days
Payment Terms: L/C, T/T
Supply Ability: 30000 per day
Contact Now
Detailed Product Description
Other Name: Carbon Film Potentiometer Power Rating: 2W
Total Resistance: 100Ω ~ 2.2MΩ Resistance Tolerance: ± 20%
Resistance Taper: B Rotary Life: 10000 Cycles

SCR30 rotary carbon film single turn potentiometer with metal shaft



Description:



The carbon film potentiometers are formed by depositing carbon composition ink on an insulating body, which in most of the cases is phenolic resin. This is one of the most commonly used materials for the pots that is quite cheap and has resolution better than the wire wound potentiometers. They have reasonable life and tolerable noise levels.



Mechanical specifications:



Total rotation angel The angle is measured by rotating shaft from the end of terminal R1 to the end of terminal R3. 312°±10°
Rotation torque Rotational torque when turn the shaft :without special provision,rotational speed is 60°/s in ambient temperature 5-35℃ 150~450gf.cm
Stop torque The force that shaft transfer from terminal 1 to stop point or terminal 3 to stop point after 10 seconds until be break ≥12kgf.cm



Electrical specifications:



Total resistance Measurement shall be made by the resistance between terminal R1and R3. 100Ω ~2MΩ
Resistance taper Resistance changes B
Total Resistance tolerance Measurement shall be made by the resistance tolerance between terminal R1 and R3. ± 20%
Rated power Rated power is based on continuous full load operation at the maximum voltage between terminal R1 and R3. 2W(50 ℃)
Residual resistance Test residual resistance beteen terminal R1 and R2; terminal R2 and R3 R≤10KΩ R0≤20Ω 10KΩ<R≤100KΩ R0≤30Ω 100KΩ<R≤250KΩ
R0≤50Ω R≥250KΩ R0≤0.1%
Rotation of noise The murmur will appear when shaft turn from terminal 1 to terminal 3 by 30 rounds/minute equably speed. ≤47mV
Voltage proof Input more then one minute voltage between terminals and shell. 1000VAC
Max. operation voltage Maximal voltage which sustained by terminal R1 and R3 500VAC
Operating temperature Potentiometer of the performance guarantee for the use ambient temperature -30℃~70℃
Insulation resistance Test voltage:DC 500V,
Test position: Between terminal and case
200MΩ



Others:



Rotation life After 10,000 rotation after the test, the changes impacted no more than ± (15% R +0.5 Ω) rotational noise of not more than 100 mv
Terminal strength After welding (350℃, 3,5 seconds) after the of terminal contacts should be good, no termination loosening of
Soldering ability Dip the terminals into tin tank at 235°C±5°C for 5±0.5 seconds, the soldering area should be more than 90%.



Resistance taper:



A letter code may be used to identify which taper is used, but the letter code definitions are not standardized. Potentiometers made in Asia and the USA are usually marked with an "A" for logarithmic taper or a "B" for linear taper; "C" for the rarely seen reverse logarithmic taper. Others, particularly those from Europe, may be marked with an "A" for linear taper, a "C" or "B" for logarithmic taper, or an "F" for reverse logarithmic taper.[2] The code used also varies between different manufacturers.



Dimension:

SCR30 10k Rotary Potentiometer , Precision Single Turn Potentiometer With Metal Shaft
