Other Name: Rotary Switch Potentiometer Power Rating: 0.5W
Total Resistance: 100Ω ~ 2.2MΩ Resistance Tolerance: ± 20%
Resistance Taper: B Rotary Life: 10000 Cycles

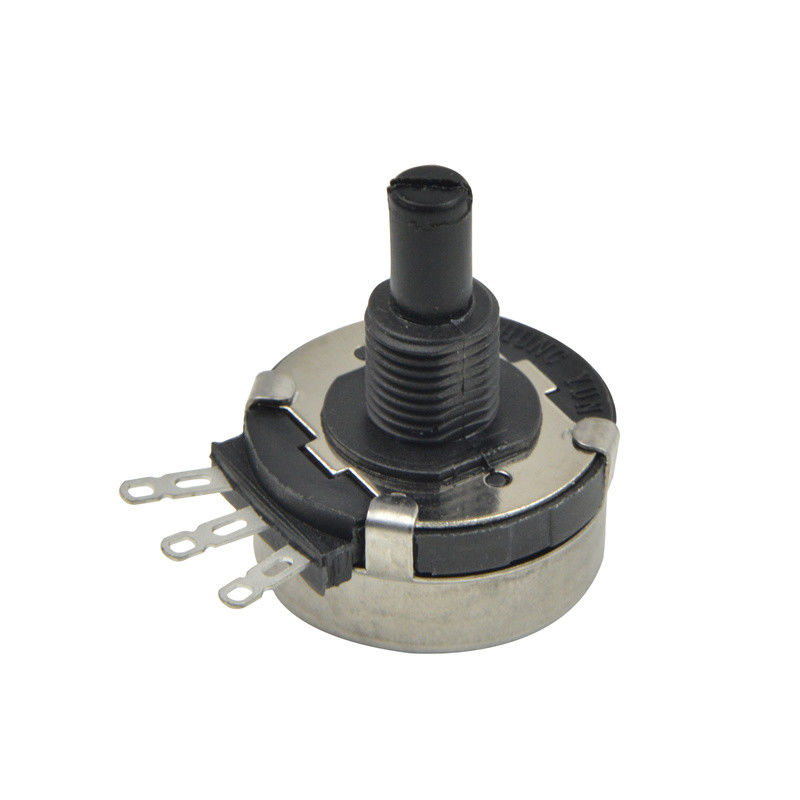

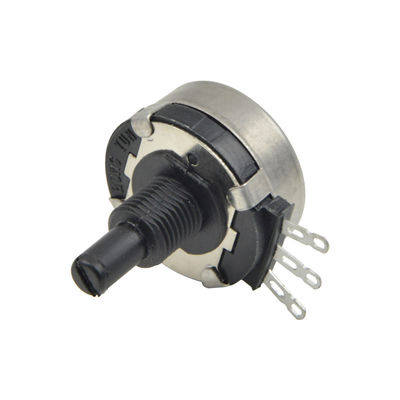

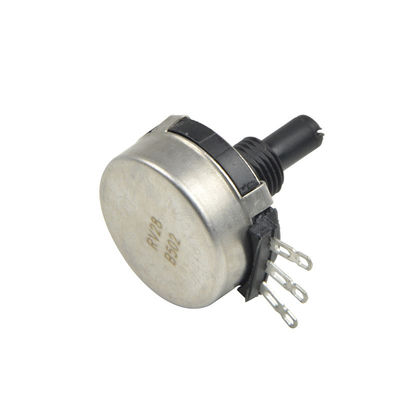

RV28 28mm plastic shaft carbon potentiometer for welding machine



Description:



Carbon Potentiometer is an electronic component classified as variable resistor. Carbon Potentiometer is used as voltage divider to provide variable output voltage. Carbon Potentiometers uses carbon as resistive element. There are also different types of Potentiometers like Wire Wound type and ceramic type using different materials on resistive element. Carbon Potentiometer can be classified into logarithmic type and linear type depending on the mode of operations. Carbon Potentiometers are of many types and sizes depending on resistance value, power rating and type of mounting.





Mechanical specifications:



Total rotation angel The angle is measured by rotating shaft from the end of terminal R1 to the end of terminal R3. 260°±10°
Rotation torque Rotational torque when turn the shaft :without special provision,rotational speed is 60°/s in ambient temperature 5-35℃ 2-20mN.m
Stop torque The force that shaft transfer from terminal 1 to stop point or terminal 3 to stop point after 10 seconds until be break ≥5kgf.cm



Electrical specifications:

Total resistance Measurement shall be made by the resistance between terminal R1and R3. 500Ω ~2MΩ
Resistance taper Resistance changes B
Total Resistance tolerance Measurement shall be made by the resistance tolerance between terminal R1 and R3. ± 20%
Rated power Rated power is based on continuous full load operation at the maximum voltage between terminal R1 and R3. 0.5W(50 ℃)
Residual resistance Test residual resistance beteen terminal R1 and R2; terminal R2 and R3 R≤10KΩ R0≤20Ω 10KΩ<R≤100KΩ R0≤30Ω 100KΩ<R≤250KΩ
R0≤50Ω R≥250KΩ R0≤0.1%
Rotation of noise The murmur will appear when shaft turn from terminal 1 to terminal 3 by 30 rounds/minute equably speed. ≤47mV
Voltage proof Input more then one minute voltage between terminals and shell. 2000VAC
Max. operation voltage Maximal voltage which sustained by terminal R1 and R3 250VAC
Operating temperature Potentiometer of the performance guarantee for the use ambient temperature -30℃~70℃
Insulation resistance Test voltage:DC 500V,
Test position: Between terminal and case
200MΩ



Others:

Rotation life After 10,000 rotation after the test, the changes impacted no more than ± (15% R +0.5 Ω) rotational noise of not more than 100 mv
Terminal strength After welding (350℃, 3,5 seconds) after the of terminal contacts should be good, no termination loosening of
Soldering ability Dip the terminals into tin tank at 235°C±5°C for 5±0.5 seconds, the soldering area should be more than 90%.



Resistance SR code table:



Resistance Code
100Ω 101
500Ω 501
1KΩ 102
2KΩ 202
3.3KΩ 332
4.7KΩ 472
5KΩ 502
10KΩ 103
20KΩ 203
22KΩ 223
47KΩ 473
50KΩ 503
100KΩ 104
200KΩ 204
250KΩ 254
500KΩ 504
1MΩ 105
2MΩ 205
2.2MΩ 225
