Insulated Shaft Motorized Rotary Potentiometer , Carbon Film Potentiometer PC1601-H-B-P18

China Ningbo Anyo Import & Export Co., Ltd. certification
China Ningbo Anyo Import & Export Co., Ltd. certification
Time is flying away, remember the first time we met in Ningbo in the year of 2005. I'm so happy with you and your team. Thanks for your support and let's look forward to the next years together.

—— Mr. Halit vergili

From partner to friend, you always give me surprise for your goods and service. We appreciate it so much. By the way, the pickled fish sauce is so nice. I'm self-confident of my cooking skills again. Don't forgot hot pot date next time.

—— Ms. Nathalie Kruse

I'm Online Chat Now

Insulated Shaft Motorized Rotary Potentiometer , Carbon Film Potentiometer PC1601-H-B-P18

Insulated Shaft Motorized Rotary Potentiometer , Carbon Film Potentiometer PC1601-H-B-P18
Insulated Shaft Motorized Rotary Potentiometer , Carbon Film Potentiometer PC1601-H-B-P18 Insulated Shaft Motorized Rotary Potentiometer , Carbon Film Potentiometer PC1601-H-B-P18 Insulated Shaft Motorized Rotary Potentiometer , Carbon Film Potentiometer PC1601-H-B-P18

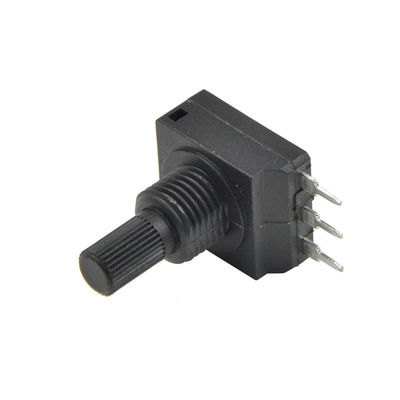

Large Image :  Insulated Shaft Motorized Rotary Potentiometer , Carbon Film Potentiometer PC1601-H-B-P18

Product Details:

Place of Origin: CHINA
Brand Name: ANYO
Model Number: PC1601-H-B-P18

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: 2000pcs/carton, 16kg, 39*31*25cm
Delivery Time: 8-10 work days
Payment Terms: L/C, T/T
Supply Ability: 30000 per day
Detailed Product Description
Other Name: Carbon Composition Potentiometer Power Rating: 0.2W
Total Resistance: 100Ω ~ 2.2MΩ Resistance Tolerance: ± 20%
Resistance Taper: B Rotary Life: 10000 Cycles
Highlight:

rotary switch potentiometer

,

carbon type potentiometer

Insulated shaft rotary potentiometer carbon film potentiometer PC1601-H-B-P18



Description:



A potentiometer is an electrical component that provides variable resistance. They're commonly found in user control circuits; volume, speed, brightness, etc…



A wide variety of potmeters exist. Manually adjustable potmeters can be divided in rotary or linear movement types. The tables below list the available types and their applications of rotary potentiometer



There are a number of terms in the electronics industry used to describe certain types of potentiometers:

• Slide pot or slider pot: a potentiometer that is adjusted by sliding the wiper left or right (or up and down, depending on the installation), usually with a finger or thumb
• Thumb pot or thumbwheel pot: a small rotating potentiometer meant to be adjusted infrequently by means of a small thumbwheel
• Trimpot or trimmer pot: a trimmer potentiometer typically meant to be adjusted once or infrequently for "fine-tuning" an electrical signal



Mechanical specifications:



Total rotation angel The angle is measured by rotating shaft from the end of terminal R1 to the end of terminal R3. 300°±5°
Rotation torque Rotational torque when turn the shaft :without special provision,rotational speed is 60°/s in ambient temperature 5-35℃ 0.3-1.5Ncm
Stop torque The force that shaft transfer from terminal 1 to stop point or terminal 3 to stop point after 10 seconds until be break >40Ncm



Electrical specifications:



Total resistance Measurement shall be made by the resistance between terminal R1and R3. 1KΩ
Resistance taper Resistance changes B
Total Resistance tolerance Measurement shall be made by the resistance tolerance between terminal R1 and R3. ± 20%
Rated power Rated power is based on continuous full load operation at the maximum voltage between terminal R1 and R3. 0.2W(50 ℃)
Residual resistance Test residual resistance beteen terminal R1 and R2; terminal R2 and R3 R0≤50Ω
Rotation of noise The murmur will appear when shaft turn from terminal 1 to terminal 3 by 30 rounds/minute equably speed. ≤100mV
Electrical rotation angle Resistance effective changes in perspective 280°±20°
Max operating voltage Maximal voltage which sustained by terminal R1 and R3 50VDC



Others:



Rotation life After 25,000 rotation after the test, the changes impacted no more than ± (15% R +0.5 Ω) rotational noise of not more than 100 mv
Terminal strength After welding (350℃, 3,5 seconds) after the of terminal contacts should be good, no termination loosening of
Soldering ability Dip the terminals into tin tank at 260°C±5°C for 2±0.5 seconds, the soldering area should be more than 90%.



Application:



Potentiometers were used to control the picture brightness, contrast, and colour response. A potentiometer was often used to adjust “vertical hold”, which affected the synchronization between the received picture signal and the receiver’s internal sweep circuit (a multi-vibrator).



Dimension:
