|Other Name:||SMD Rectifier Diode||Terminals:||Solder Plated Solderable Per MIL-STD-202, Method 208|
|Polarity:||Color Band Denotes Cathode End||Mounting Position:||Any|
|Weight:||0.063grams (approx)||Average Forward Current:||1A|
|Non-repetitive Peak Current:||30A||Package:||SMA|
ultra fast recovery diode,
schottky barrier rectifier diode

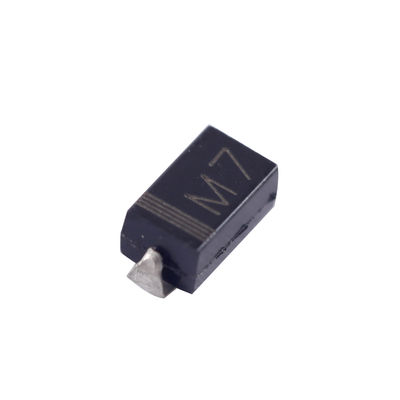

1.0A 1000V surface mount silicon rectifier M7 for general purpose
A diode is a one-way valve for electricity. Diodes allow flow of electricity in one direction. Most diodes have a painted line on one end showing the direction or flow. The negative side is normally white.
An SMT component is usually smaller than its through-hole counterpart because it has either smaller leads or no leads at all. It may have short pins or leads of various styles, flat contacts, a matrix of solder balls (BGAs), or terminations on the body of the component.
• Ideal for surface mount application
• Surge overload rating to 30A peak
• Plastic material has UL recognition flammability classification 94V-0
• Build-in strain relief
• Can be used to prevent reverse polarity problem
• Half Wave and Full Wave rectifiers
• Used as a protection device
• Current flow regulators
Maximum Ratings & Thermal Characteristics:
Rating at 25℃ ambient temperature unless otherwise specified, Resistive or Inductive load, 60 Hz.
For Capacitive load derate current by 20%.
|Max.repetitive peak reverse voltage||VRRM||1000||V|
|Max. RMS bridge input voltage||VRMS||700||V|
|Max. DC blocking voltage||VDC||1000||V|
|Max. average forward rectified output current at TA=100℃||IF(AV)||1.0||A|
|Peak forward surge current single sine-wave superimposed on rated load (JEDEC Method)||IFSM||30.0||A|
|Typical thermal resistance per element||ReJA||28||℃/W|
|Typical junction capacitance per element||Cj||10||pF|
|Operating junction and storage temperature range||
|-65 to +150||℃|
Rating at 25℃ ambient temperature unless otherwise specified. Resistive or Inductive load, 60Hz.
For Capacitive load derate by 20 %.
|Max. instantaneous forward voltage drop per leg at 1.0A||VF||1.1||V|
Max. DC reverse current at rated TA=25℃
DC blocking voltage per element TA=125℃
Difference between diode and rectifier:
|Definition||A diode is a type of electrical device that allows the current to move through it in only one direction.||Rectifiers are electronic devices that are used for converting AC voltage into unidirectional pulsating DC voltage. Diodes are often used in the design of rectifiers.|
|Uses||• Clipping and Clamping - to protect the circuits by putting limitations on the voltage
• Voltage rectifier – Turing AC into DC
• Voltage Multipliers
• Non-linear mixing of two voltages
|• They can be found regulating the power in computers and the electrical power in motor vehicles.
• They can also be used in battery chargers for rechargeable batteries, computer power supplies and vehicle batteries.
• Often used for AC to DC conversion,
• Can also be used in the detector of radios in order to perform radio demodulation.
|Types||• Junction diode (ordinary type)
• Light emitting (LED)
• Photodiodes (absorbs light, gives current)
• Schottky (high speed switch, low turn on voltage, Al. on Silicon)
• Tunnel (I vs. V slightly different than jd's, negative resistance!)
• Veractor (junction cap. varies with voltage)
• Zener (special junction diode, use reversed biased)
|• Half-wave rectifier - It is the simplest type of rectifier, which is made with just one diode.
• Full-wave rectifier - This rectifier is essentially made of two half-wave rectifiers, and can be made with two diodes and an earthed center tap on the transformer.
• Bridge rectifier - It makes use of four diodes in a bridge arrangement to achieve full-wave rectification.
|Device type||A diode only has 2 semi conductive regions, and therefore has 2 leads.||A rectifier assembly generally has multiple diodes, or more than two terminations.|
