57mm Mylar Speakers 8Ω 0.5W

57mm Mylar Speakers 8Ω 0.5W
57mm Mylar Speakers 8Ω 0.5W 57mm Mylar Speakers 8Ω 0.5W 57mm Mylar Speakers 8Ω 0.5W

Large Image :  57mm Mylar Speakers 8Ω 0.5W

Product Details:

Place of Origin: CHINA
Brand Name: ANYO
Model Number: 57M

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: 1000pcs/carton, 16.5kg, 56*34*35cm
Delivery Time: 8-10 work days
Payment Terms: L/C, T/T
Supply Ability: 50000PCS per day
Detailed Product Description
Other Name: Mylar Speaker Diameter: 57mm
Total Height: 8.4mm Rated Imp.: 8ohm±15%
Resonance Freq: 200Hz±20% Output S.P.L.: 84±3dB
High Light:

replacement speaker drivers


mylar cone speaker

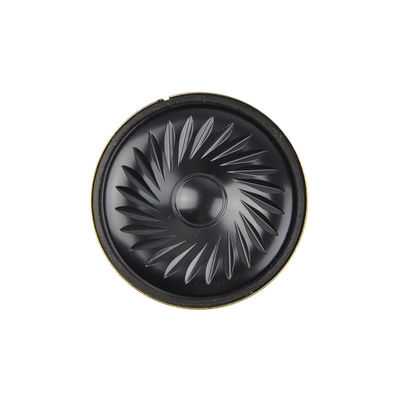

Weatherproof 57mm miniature ultra thin mylar loudspeakers 8Ω 0.5W



A weatherproof speaker in 57mm size. The cone is made from water resistant Mylar film. Suitable for portable or exterior equipment where moisture may be encountered, i.e. alarm panels, sounders and door entry systems.

Traditional speakers produce sound by using an electromagnet to move a flexible cone back and forth. They use drivers to help translate electrical signals into physical vibrations so that you can hear recorded sounds. A tweeter is the type of speaker driver that produces the highest range frequency. The other two main drivers are woofers and midrange.

Basically, a driver moves a flexible cone, or diaphragm, back and forth very quickly to produce sound waves. The diaphragm is normally made of paper, plastic or metal and it's attached to the suspension's wide end. The suspension, also called the surround, is a flexible metal rim that lets the cone move. It's connected to the basket, which is the driver's metal frame. On the narrow end of the cone is a voice coil, which hooks up to the basket via a flexible metal ring that lets the coil move back and forth while still keeping it in place.


Features and benefits
Mylar cones
• Suitable for a wide range of applications
• 57mm diameter
• Wide frequency response enables the speakers to be used for speech, music or high frequency alarm output
• Solder tag termination
• Fitted with flange to assist mounting



• Nurse Call Systems

• Medical products

• Test equipment

• Emergency locators

• Telephone security products

• Monitoring equipment



Item Specification Testing condition
Rated Imp. 8Ω±15% At 1kHz 1.0V
Resonance Freq. 200Hz±20% Without baffle
Output S.P.L. 84±3dB At 1m 1W 400,600,800,1K Average
Input Power Rated Power: 0.5W Max Power: 1.0W
Frequency Range F0---15KHz Output S.P.L. -10dB
Opreation Must be normal Program Source: 0.5W
Buzzers & Rattles Must be normal Sin Wave 2.83V
Load test After Test Meet 2&7 1.0W 96hours White Noise
Distortion 5% Max. 1.0W 1000Hz
Heat test After Test 7&8&9 55°C±2°C 16hours
Cold test After Test 7&8&9 -20°C±3°C 16hours
Humidity After Test 7&8&9 40°C±2°C 90∽95% R.H. 48hours
Insulation resistance 1MΩ

Dc100v FRA. And TER.

Magnet Ø12.5×1.5 N35
Net weight 16.3g/PC
Polarity When a positive D.C voltage is applied to the terminal marked (+) or red, the diaphragm should move to the front.
