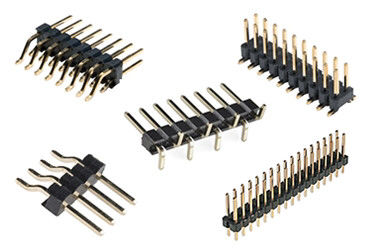

Gold Plated 2.54mm Single Row Smt Header Connector / Surface Mounted Circuit Board Pin Connectors

Gold Plated 2.54mm Single Row Smt Header Connector / Surface Mounted Circuit Board Pin Connectors
Gold Plated 2.54mm Single Row Smt Header Connector / Surface Mounted Circuit Board Pin Connectors Gold Plated 2.54mm Single Row Smt Header Connector / Surface Mounted Circuit Board Pin Connectors Gold Plated 2.54mm Single Row Smt Header Connector / Surface Mounted Circuit Board Pin Connectors

Large Image :  Gold Plated 2.54mm Single Row Smt Header Connector / Surface Mounted Circuit Board Pin Connectors

Product Details:

Place of Origin: CHINA
Brand Name: ANYO
Model Number: AY1010-5A

Payment & Shipping Terms:

Minimum Order Quantity: 2000pcs
Price: Negotiation
Packaging Details: Customized carton
Delivery Time: 8-10 work days
Payment Terms: L/C, T/T
Supply Ability: 100000 per day
Detailed Product Description
Other Name: SMT Pin Header Current Rating: 3A
Termination Type: Surface Mounted No Of Rows: Single Row
Storage Temperature: -20~70℃ Dielectric Withstanding: 600 VAC
High Light:

stereo headphone jack

,

mono headphone jack

,

aviation wire connectors

2.54mm Single Row SMT Mounted Header Connectors / Wire To Board Connectors



Description:



Normally pin headers are pin through hole (PTH) devices, but surface-mount technology (SMT) versions of one and two row pin headers also exist. In the latter case the solder sides of the pins are simply bent on a 90 degree angle so as to be soldered to a solder plane. On single row pin headers the pins are bent alternating to one side or the other, on dual row pin headers the pins are simply bent outwards. If pin headers are optional, the PTH variant is often chosen for ease of manual assembly. Pin headers can be either straight or angled. The latter form is often used to connect two boards together.



Specification:



Material

Housing: High temperature UL94V-0, black

Contacts: Copper alloy

Contact plating: Full gold or Tin over nickel

Current rating 3A
Plating Gold plated
Insulator resistance 1000MΩ min. at DC500V
Contact resistance 20mΩ max.
Dielectric Withstanding 600VAC
Storage Temperature -20~70℃
Operating Temperature -40~105℃





Dimension: (mm)



N: Number of contacts

A/B/C: Customer length available



Type Dimension

Pin Length

(mm)

A B C
1 1.50 6.00 3.00 13.80
2 1.20 6.00 3.00 13.50
3 0.68 7.75 1.20 12.90
4 1.20 8.00 2.50 14.90
5 1.20 6.00 1.20 11.70
6 0.70 6.00 1.40 11.30
7 1.50 6.00 1.20 11.90
8 1.00 5.84 1.40 11.60
9 1.00 8.13 1.40 13.80
10 1.18 11.00 2.50 17.90
11 0.68 4.50 1.40 10.00



Gold Plated 2.54mm Single Row Smt Header Connector / Surface Mounted Circuit Board Pin Connectors 0
