Pin Type Carbon Composition Potentiometer With Switch Dimmer Switch Speed Controller

Pin Type Carbon Composition Potentiometer With Switch Dimmer Switch Speed Controller

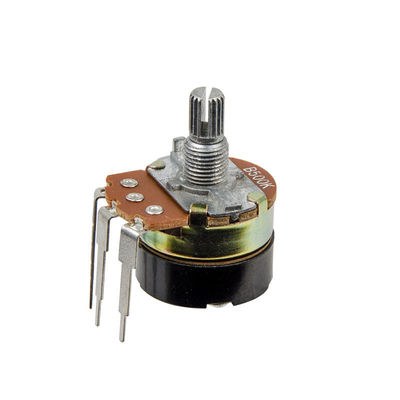

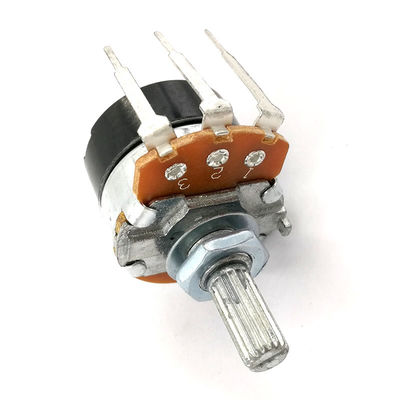

Pin Type Carbon Composition Potentiometer With Switch Dimmer Switch Speed Controller Pin Type Carbon Composition Potentiometer With Switch Dimmer Switch Speed Controller

Large Image :  Pin Type Carbon Composition Potentiometer With Switch Dimmer Switch Speed Controller

Product Details:

Place of Origin: CHINA
Brand Name: ANYO
Model Number: WH138-4

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: 2000pcs/carton, 16kg, 39*31*25cm
Delivery Time: 8-10 work days
Payment Terms: L/C, T/T
Supply Ability: 30000 per day
Detailed Product Description
Other Name: Switch Potentiometer Rotational Noise: ≤47mV
Total Resistance: 1KΩ ~ 2MΩ Resistance Tolerance: ± 20%
Resistance Taper: A,B,C Rotary Life: 10000 Cycles
High Light:

rotary switch potentiometer

,

carbon type potentiometer

Pin type WH138-4 potentiometer with switch dimmer switch speed controller





Application:



Ideal for multimedia, computer speaker, stereos amplifier, lighting regulation etc.



Description:



Rorary potentiometer is a manually adjustable variable resistor with 3 terminals. Two terminals are connected to both ends of a resistive element, and the third terminal connects to a sliding contact, called a wiper, moving over the resistive element. The position of the wiper determines the output voltage of the potentiometer. The potentiometer essentially functions as a variable voltage divider. The resistive element can be seen as two resistors in series(potentiometer resistance), where the wiper position determines the resistance ratio of the first resistor to the second resistor.



Features:



• Rotary type with switch

• Carbon composition

• Top adjustment

• 6mm knurled shaft

• Special tapers



Mechanical specifications:



Rotational torque 2~20mN.m (20~200gf.cm)
Total rotation angle 300°±5°
Switch working force/torque 150~450mN.m
Shaft stop strength 6Kgf.cm/min
Rotary life 10000 cycles
Switch life 10000 times
Switch working angle 50°±10°
Soldering 235℃±5℃: ≤3s



Electrical specifications:



Temperature range -10℃~100℃
Rated power

Curve B: 0.5W

Other curve B: 0.25W

Max. operation voltage

Curve B: AC 500V

Other curve B: AC250V

Resistance tolerance ± 20%
Resistance range 1KΩ~2MΩ
Rotational noise ≤ 47 mV
Residual resistance R ≥ 250KΩ 0.1% max.
250KΩ> R> 10KΩ 20 Ω max
10KΩ ≥ R 10 Ω max
Resistance taper A,B,C
Switch contact resistance Less than 30mΩ
Dielectric AC500V for 1 minute
Rated switching power AC125V 1A,4A,6A
Insulation resistance More than 100MΩ at DC250V





A wide variety of potentiometers exist. Manually adjustable potentiometers can be divided into rotary or linear movement types. The tables below list the available types and their applications of rotary potentiometer:





Types Description Application
Single-turn potentiometer Single rotation of approximately 270 degrees or 3/4 of a full turn Most common potentiometer, used in applications where a single turn provides enough control resolution.
Multi-turn potentiometer Multiple rotations (mostly 5, 10 or 20), for increased precision. They are constructed either with a wiper that follows a spiral or helix form, or by using a worm-gear. Used where high precision and resolution is required. The worm-gear multi turn pots are often used as trimpots on PCB.
Dual-gang potentiometer Two potentiometer combined on the same shaft, enabling the parallel setting of two channels. Most common are single turn potentiometers with equal resistance and taper. More than two gangs are possible but not very common. Used in for example stereo audio volume control or other applications where 2 channels have to be adjusted in parallel.
Concentric potentiometer Dual potmeter, where the two potentiometers are individually adjusted by means of concentric shafts. Enables the use of two controls on one unit. Often encountered in (older) car radios, where the volume and tone controls are combined.
Servo potentiometer A motorized potmeter which can also be automatically adjusted by a servo motor. Used where manual and automatic adjustment is required. Often seen in audio equipment, where the remote-control can turn the volume control knob.




The taper of a potentiometer is normally indicated with a letter. The following table lists the used coding for potentiometer taper, different standards uses the same letters which can be confusing. It is always a good idea to double check the taper by measurement.



Taper String Asia (common) Europe America Vishay
Linear LIN B A B A
Log / Audio LOG A C A L
Anti-log     F C F
